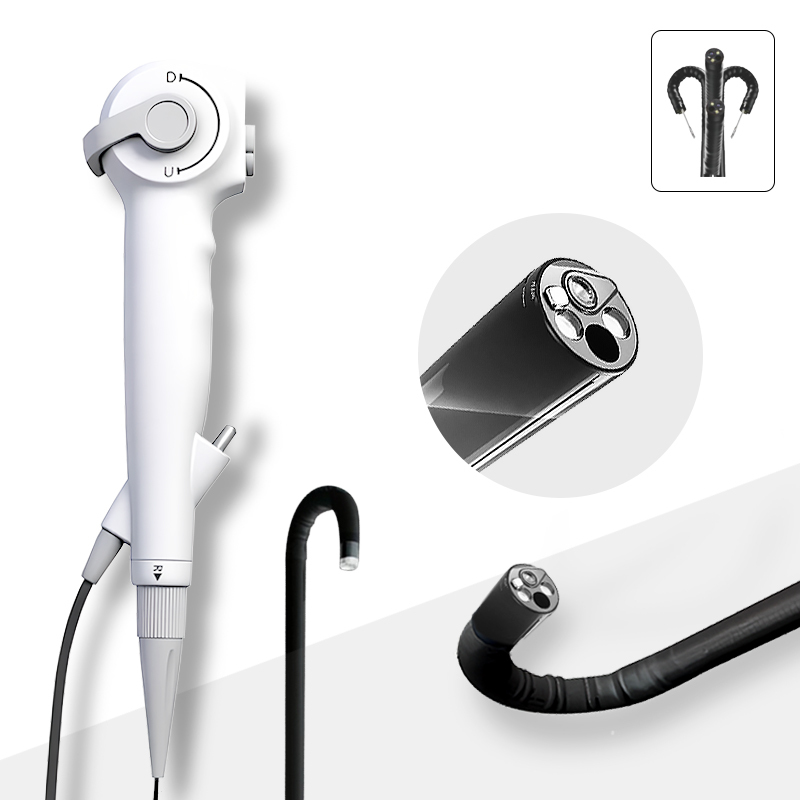

Disposable Urinary Endoscope
Strong technical and production capabilities support our powerful customization ability for various scenarios and public specifications, and a robust supply chain enables us to provide higher cost-effective products.
Ask for a quote
Features
- Flexible customization
- High cost-effectiveness
- Full-process quality inspection
- Rapid prototyping
- Stable delivery
Quality guaranteed
A strong R&D team ensures rigorous and scientific design
Self-developed high-precision equipment guarantees machining accuracy
Process and quality inspection standards ensure stable product quality
Share
- More info
1. Product Specifications
Application Department | Urology |
Camera Pixel | 160,000; 1 million |
Field of View | 110° |
Effective Depth of Field | 3-50mm/5-100mm |
Distal End Outer Diameter | 2.3-5.4mm |
Insertion Tube Outer Diameter | 2.3-5.0mm |
Insertion Tube Length (Customizable) | 660mm |
Instrument Channel Inner Diameter | 1.2/2.2mm |
Bending Angle (Customizable) | 210° |
Bending Direction (Customizable) | Four-way |
Snake Bone Craftsmanship | Riveting/Laser Cutting |
Supported Display Devices (Customizable) | Tablet/Computer/Portable Monitor |
2. Material Description
Snake Bone (Insertion Tube Skeleton): Medical Grade 304 / 316 Stainless Steel
Handle: Polypropylene (PP), excellent corrosion resistance
Outer Sheath: Optional TPE, TPV, TPU, PEBAX, meeting various flexibility and chemical resistance requirements
3. Core Craftsmanship
High-Precision Laser-Cut Snake Bone — Accuracy controlled within ±0.02 mm
Snake Bone Polishing and Grinding — Surface roughness Ra < 0.02 μm
Fully Automated Micro-Camera Welding — Stable imaging, high-definition display
Insertion Tube Surface Treatment — Improved smoothness, wear resistance, chemical resistance, and hydrophilicity for ease of operation
4. Quality Assurance
Wire Strength Test — Ø0.2 mm wire tensile strength up to 60 N
Whole Machine Bending Endurance — Bending section can be continuously bent 2,000 times
100% System Inspection — Full inspection of snake bone system, camera system, and injection molding system
Whole Machine Sampling Inspection — Fatigue testing after assembly to ensure long-term reliability
5. Personalized Customization
Leveraging strong design and supply chain integration capabilities, we can provide:
Different types of snake bone systems
Multiple camera system options
Multi-material outer sheath hoses
Various handle control systems
Flexible combinations to meet multi-scenario and multi-department application needs
6. Rapid Response and Delivery
Ultra-fast accessory prototyping
Whole machine samples available in as fast as 1 week
Custom solutions designed in as fast as 2 weeks
Video remote inspection available
Sealed packaging for safe delivery
