Camera Module
Camera Module
Size as small as 0.5*0.5 mm, maximum resolution up to 4K, offering various LED packaging forms to meet your diverse needs
Features
- Customization capability
- High cost-effectiveness
- Supports mobile phones and tablets
- Stable supply
Quality guaranteed

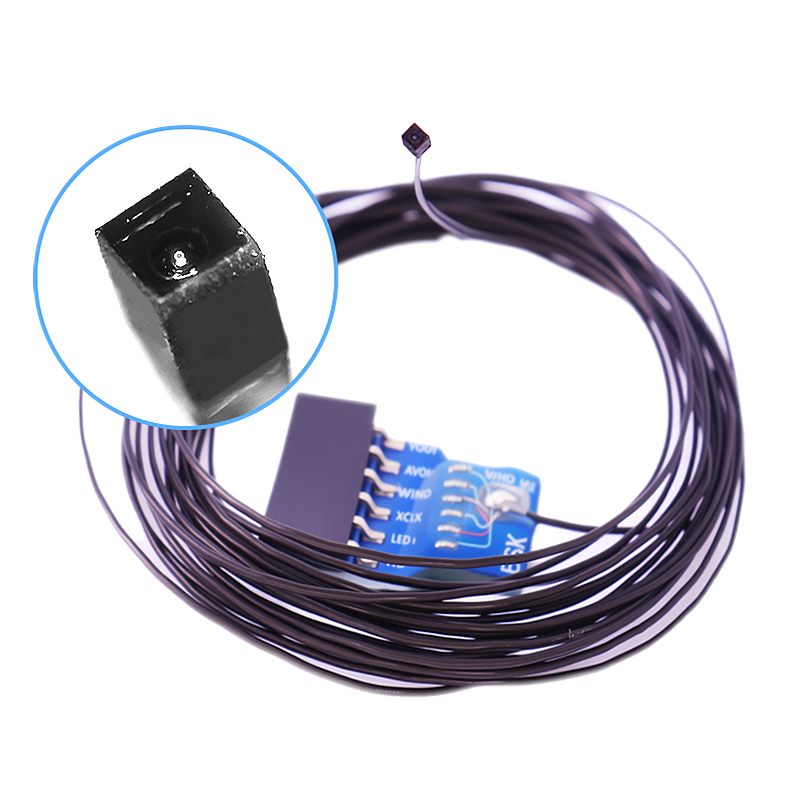

The camera module is the core of the endoscope. We use internationally renowned brand camera chips to ensure imaging quality; and independently develop ultra-micro automatic welding equipment to avoid quality fluctuations caused by manual welding
2. Product Specifications
This product covers various sizes and resolution specifications, compatible with different medical endoscopes, industrial inspection equipment, or miniature electronic devices. Supports from 0.5mm×0.5mm ultra-micro cameras to 4K high-definition imaging modules, meeting diverse application requirements.
| Model | Resolution | Pixel Size | Target Size | Module Size (mm²) | Interface Type |
| OCHTA10 | 400*400 | 1.008*1.008um | 1/31 inch | 0.65*0.65 | Analog Signal |
| OV6946 | 400*400 | 1.75*1.75um | 1/18 inch | 1.05*1.05 | Analog Signal |
| OCHFA10 OCHFA20 | 720*720 | 1.008*1.008um | 1/17.5 inch | 1.15*1.15 | Analog Signal |
| OCOSA10 | 800*800 | 1.16*1.16um | 1/14.25 inch | 2.58*1.58 | MIPI, LVDS |
| OV9734 | 1280*720 | 1.4*1.4um | 1/9 inch | 2.53*1.72 | MIPI |
3. Product Features
Collaborating with global leading camera chip companies, we provide: sizes as small as 0.5*0.5mm; resolutions up to 4K; excellent color reproduction capability; outstanding low-light performance and wide dynamic range.
4. Core Technology
Independently developed ultra-micro camera module wire harness welding equipment enables automatic welding of 0.5*0.5mm ultra-micro cameras, ensuring reliable and secure circuit connections. Precision welding technology guarantees each module maintains high-definition stable display performance after long-term use, adapting to complex application environments.
5. Customization Services
Leveraging strong design and R&D capabilities, we can match appropriate camera modules and LED light source combinations according to specific application scenarios and functional requirements. Whether for minimally invasive instrument endoscopic imaging, high-brightness industrial inspection, or high-definition image capture, we provide customized solutions ensuring imaging quality and user experience.
6. Response & Delivery
1-week rapid prototyping
2-week bulk delivery completion
Support video remote inspection
Sealed packaging, safely delivered to customer site
